PCB Assembly Storage: Best Practices and Solutions

PCB Assembly Storage: Best Practices and Solutions

May 06, 2024

If you are involved in the manufacturing of printed circuit boards, you know how important it is to properly store them. PCB assembly storage is crucial for ensuring that your boards remain in good condition until they are ready to be used. Storing your PCBs properly can help prevent damage and ensure that they work as intended when you are ready to use them.

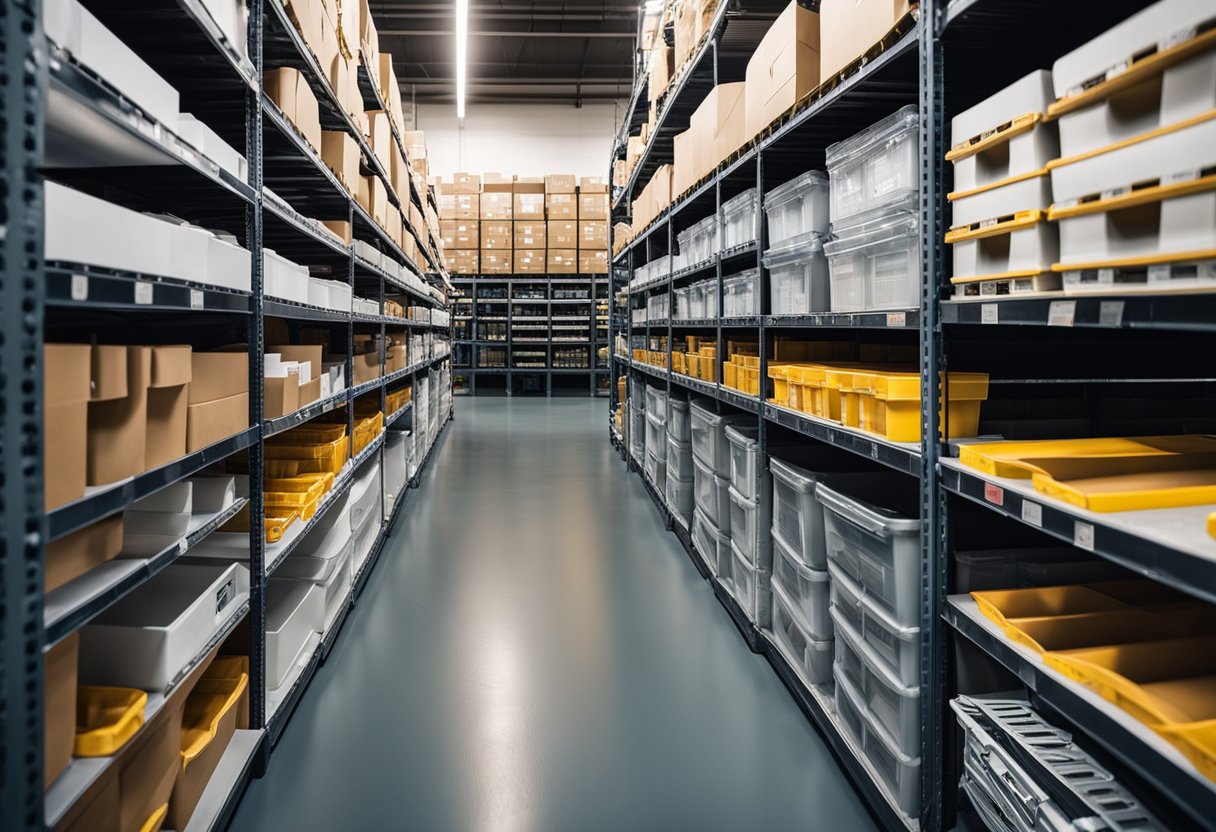

Components organized on shelves in a well-lit warehouse. Labels and bins clearly mark each item for easy access and inventory management

There are a number of factors to consider when it comes to PCB assembly storage. One of the most important is temperature. PCBs should be stored in a cool, dry place to prevent damage from moisture and humidity. Additionally, it is important to protect your PCBs from dust and other contaminants that can accumulate over time. Proper storage techniques can help extend the life of your PCBs and ensure that they are in good working condition when you need them.

Essential Principles of PCB Assembly Storage

When it comes to PCB assembly storage, there are three essential principles that you need to keep in mind to ensure the product quality is maintained, and the components remain functional. These principles are temperature and humidity control, ESD prevention, and shelf life management.

Temperature and Humidity Control

Temperature and humidity control are critical factors in PCB assembly storage. Exposure to high humidity and temperature can cause moisture to accumulate on the board, which can lead to corrosion and damage the components. On the other hand, exposure to low humidity can cause static electricity buildup, which can damage the components.

To prevent these issues, you should store your PCBs in a controlled environment with a temperature range of 23±3 °C and relative humidity of 55±10% RH, respectively. You should also ensure that the storage environment is in good condition, with a non-corrosive gas present indoors, and the temperature must be controlled.

ESD Prevention

Electrostatic discharge (ESD) is a common problem in PCB assembly storage. ESD can cause damage to the components, which can lead to product failure. To prevent ESD, you should store your PCBs in an ESD-safe environment. This means using ESD-safe packaging, such as antistatic bags, and ensuring that all personnel handling the PCBs are properly grounded.

Shelf Life Management

The shelf life of your PCBs depends on the type of components used and the storage environment. To ensure that your PCBs remain functional, you should establish a shelf life management program that includes regular inspections and testing.

You should also keep track of the date of manufacture and the date of expiry for each PCB. This will help you identify any PCBs that have exceeded their shelf life and need to be replaced.

In summary, temperature and humidity control, ESD prevention, and shelf life management are the essential principles of PCB assembly storage. By following these principles, you can ensure that your PCBs remain functional and maintain their product quality.

Storage Equipment and Infrastructure

When it comes to storing PCB assemblies, having the right equipment and infrastructure is essential. In this section, we will discuss some of the most common storage solutions for PCB assemblies.

Storage Racks and Shelving

Storage racks and shelving are a popular choice for PCB assembly storage because they are affordable and easy to set up. They come in a variety of sizes and configurations, allowing you to customize your storage solution to meet your specific needs. Additionally, they are often designed to be adjustable, allowing you to change the configuration as needed to accommodate different sized PCB assemblies.

Moisture Barrier Bags

Moisture barrier bags are another popular storage solution for PCB assemblies. These bags are designed to protect the assemblies from moisture and other environmental factors that can cause damage over time. They are typically made from a combination of materials, including aluminum foil and polyethylene, and are available in a variety of sizes and configurations.

Vacuum Sealing Solutions

Vacuum sealing solutions are another option for PCB assembly storage. These solutions work by removing all of the air from the storage container, creating a vacuum seal that helps to protect the assemblies from moisture and other environmental factors. They are often used in combination with moisture barrier bags for added protection.

Overall, the storage equipment and infrastructure you choose will depend on your specific needs and requirements. Consider factors such as the size and quantity of your PCB assemblies, as well as your available space and budget, when selecting a storage solution. By choosing the right storage equipment and infrastructure, you can help to ensure that your PCB assemblies remain safe and secure for years to come.

Handling and Accessibility

When it comes to PCB assembly storage, handling and accessibility are crucial aspects to consider. Here are some best practices to keep in mind:

Organizational Best Practices

Having a well-organized storage system can prevent damage to the PCBs and ensure easy accessibility when needed. Consider using labeling and tracking systems to keep track of the PCBs in storage. You can also use storage cabinets with designated compartments for different types of PCBs. This will help you quickly locate the PCB you need without having to search through a pile of PCBs.

Handling Protocols

Proper handling protocols can prevent damage to the PCBs and ensure their longevity. When handling PCBs, it is important to wear gloves to prevent contamination from oils and dirt on your hands. You should also avoid touching the copper traces or components on the PCBs as much as possible. When transporting PCBs, use antistatic bags or containers to prevent electrostatic discharge damage. Additionally, avoid stacking PCBs on top of each other as it can cause damage to the PCBs at the bottom of the stack.

In summary, by adhering to proper handling and organizational practices, you can ensure the longevity and accessibility of your PCBs. By doing so, you can prevent damage to the PCBs and ensure easy access when needed.

Inventory Management

When it comes to PCB assembly storage, inventory management is a crucial aspect that can make or break your business. Proper inventory management ensures that you always have the right components in stock, which can help you avoid production delays and reduce overall costs.

Stock Rotation

One important aspect of inventory management is stock rotation. This involves rotating your stock of components to ensure that the oldest components are used first. By doing this, you can avoid having components expire or become obsolete, which can lead to waste and unnecessary costs.

To implement stock rotation, you should keep track of the date that each component was received and use a First-In, First-Out (FIFO) system. This means that the oldest components are used first, and newer components are only used once the older components have been exhausted.

Tracking and Traceability

Another critical aspect of inventory management is tracking and traceability. This involves keeping track of each component that enters and leaves your inventory. By doing this, you can quickly identify any issues that arise, such as missing or damaged components.

To ensure proper tracking and traceability, you should use a barcode or RFID system to track each component. This will allow you to quickly identify each component and track its movement throughout your inventory. Additionally, you should keep a record of each component’s unique identifier, such as its serial number or batch number, to ensure that you can quickly identify any issues that arise.

Overall, effective inventory management is critical for any PCB assembly storage facility. By implementing stock rotation and tracking and traceability systems, you can ensure that you always have the right components in stock and avoid unnecessary costs and production delays.
