PCB Assembly and Soldering: A Guide to Successful Circuit Board Manufacturing

PCB Assembly and Soldering: A Guide to Successful Circuit Board Manufacturing

May 20, 2024

PCB assembly and soldering is a crucial process in the manufacturing of electronic devices. PCBs or Printed Circuit Boards are the backbone of any electronic device, and the assembly process is what brings them to life. The process involves placing electronic components onto the PCB and then soldering them onto the board.

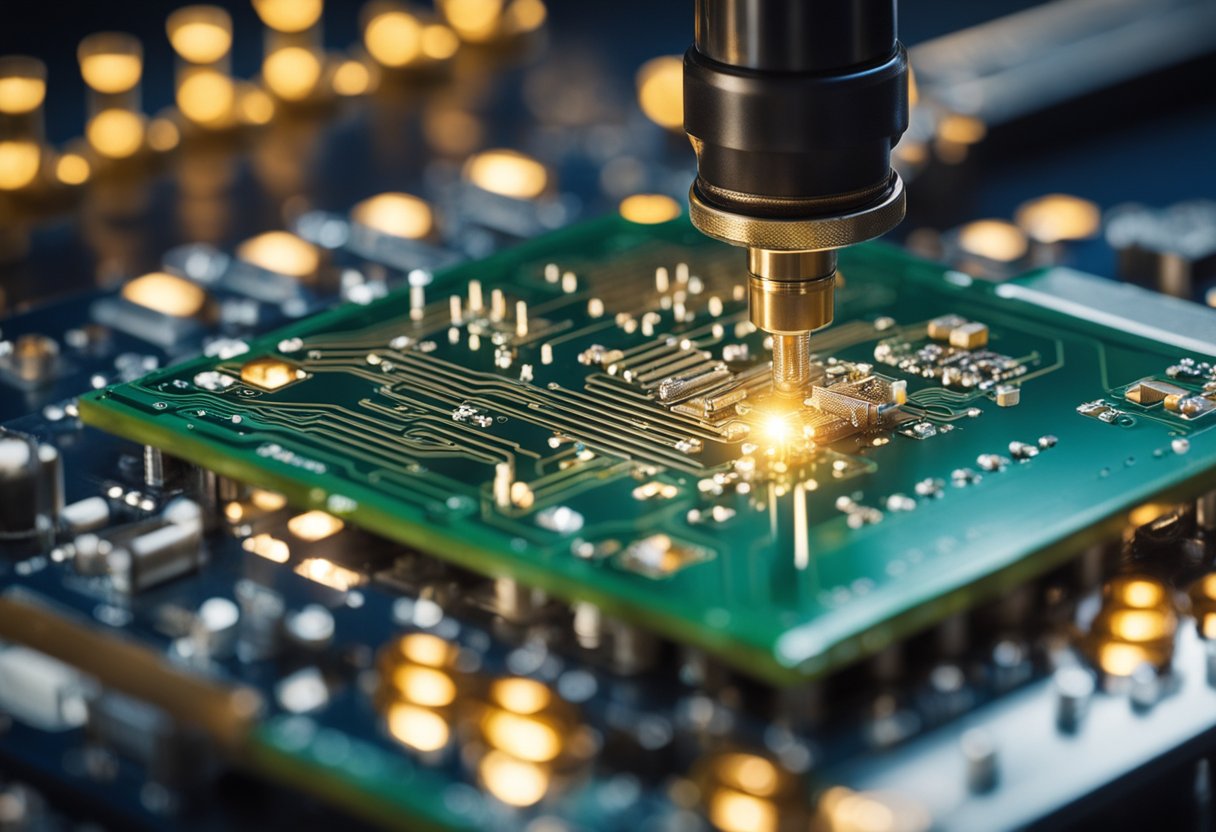

Components arranged on a printed circuit board, with a soldering iron melting solder onto the connections

Soldering is the process of joining two metals together by melting a filler metal, known as solder, into the joint. It is a critical process in PCB assembly as it ensures that the electronic components are securely attached to the board and have a reliable electrical connection. There are different types of soldering techniques used in PCB assembly, including wave soldering, reflow soldering, and selective soldering. Each technique has its advantages and disadvantages, and the choice of technique depends on factors such as the type of components being used, the volume of production, and the cost of the process.

PCB assembly and soldering play a significant role in the quality and reliability of electronic devices. A poorly assembled or soldered PCB can result in a malfunctioning device, which can be costly to repair or replace. Therefore, it is essential to understand the PCB assembly and soldering process to ensure that electronic devices are of high quality and reliable.

PCB Assembly Basics

Soldering iron melts solder onto PCB components. Flux is used to remove oxidation and ensure a strong bond

PCB assembly is the process of attaching electronic components to a printed circuit board. This process is crucial for creating functional electronic devices. In this section, we will discuss the basics of PCB assembly, including component identification, types of PCBs, and assembly techniques.

Components Identification

Before assembling the PCB, it is essential to identify the components and their placement on the board. The components can be identified by their package type, value, and polarity. The package types can be through-hole or surface mount. Through-hole components have leads that pass through the board, while surface mount components are mounted directly onto the board.

Types of PCBs

There are several types of PCBs, including single-sided, double-sided, and multilayer PCBs. Single-sided PCBs have components on only one side of the board, while double-sided PCBs have components on both sides of the board. Multilayer PCBs have several layers of conductive material and are used for complex circuits.

Assembly Techniques

There are several techniques for assembling PCBs, including manual and automated assembly. Manual assembly involves placing the components on the board by hand and soldering them in place. Automated assembly uses machines to place and solder the components onto the board.

Another assembly technique is reflow soldering, which involves applying solder paste to the board and then heating the board to melt the paste and create a bond between the components and the board. Selective soldering is used when a through-hole component might be damaged by high heat or is unsuitable for the wave and reflow processes. Intrusive soldering is used to apply solder paste to through-hole components, and solder joints are formed in through-holes during reflow.

PCB assembly is a critical process in creating functional electronic devices. It involves identifying the components, selecting the appropriate type of PCB, and choosing the right assembly technique. By understanding the basics of PCB assembly, one can create reliable and high-quality electronic devices.

Soldering Fundamentals

An electronic circuit board with components being soldered together using a soldering iron and solder

Soldering is the process of joining two or more metal components using a filler metal alloy known as solder. This molten solder forms a strong bond upon cooling, creating electrical connections between components and the PCB. Soldering is a critical step in the PCB assembly process, and it is essential to understand the fundamentals of soldering to achieve reliable and functional PCBs.

Soldering Materials

The most commonly used soldering material is a tin-lead alloy, which is available in various compositions. Solder with a higher percentage of tin is preferred over lead-based solder due to its lower toxicity. Lead-free solder is also available and is used in applications that require compliance with environmental regulations. Solder wire is the most common form of solder, and it is available in various diameters and flux compositions.

Flux is a chemical agent that helps to remove oxides from the metal surfaces and prevent oxidation during the soldering process. Flux is available in the form of a paste, liquid, or a pre-coated flux core in the solder wire. The choice of flux depends on the type of soldering process and the materials being soldered.

Soldering Tools

The soldering iron is the primary tool used for soldering. A soldering iron is a heating tool that is used to melt the solder and create a bond between the metal components. Soldering irons are available in various wattages and tip shapes, and the choice of soldering iron depends on the type of soldering process and the materials being soldered.

Other essential tools for soldering include a soldering stand, soldering sponge, and tweezers. A soldering stand is used to hold the soldering iron when not in use, and it also helps to prevent accidental burns. A soldering sponge is used to clean the soldering tip and remove excess solder. Tweezers are used to hold small components in place during the soldering process.

Soldering Process

The soldering process involves several steps, including cleaning, tinning, and soldering. Cleaning the metal surfaces is essential to ensure a strong bond between the metal components. The metal surfaces can be cleaned using a wire brush or sandpaper.

Tinning is the process of applying a thin layer of solder to the metal surfaces before soldering. Tinning helps to improve the wetting of the metal surfaces and prevent the formation of cold solder joints.

Soldering involves heating the metal components with the soldering iron and applying solder to the joint. The solder should melt and flow evenly over the metal surfaces, creating a strong bond between the components.

In summary, understanding the fundamentals of soldering is essential for achieving reliable and functional PCBs. The choice of soldering materials and tools depends on the type of soldering process and the materials being soldered. The soldering process involves several steps, including cleaning, tinning, and soldering.

Surface-Mount Technology

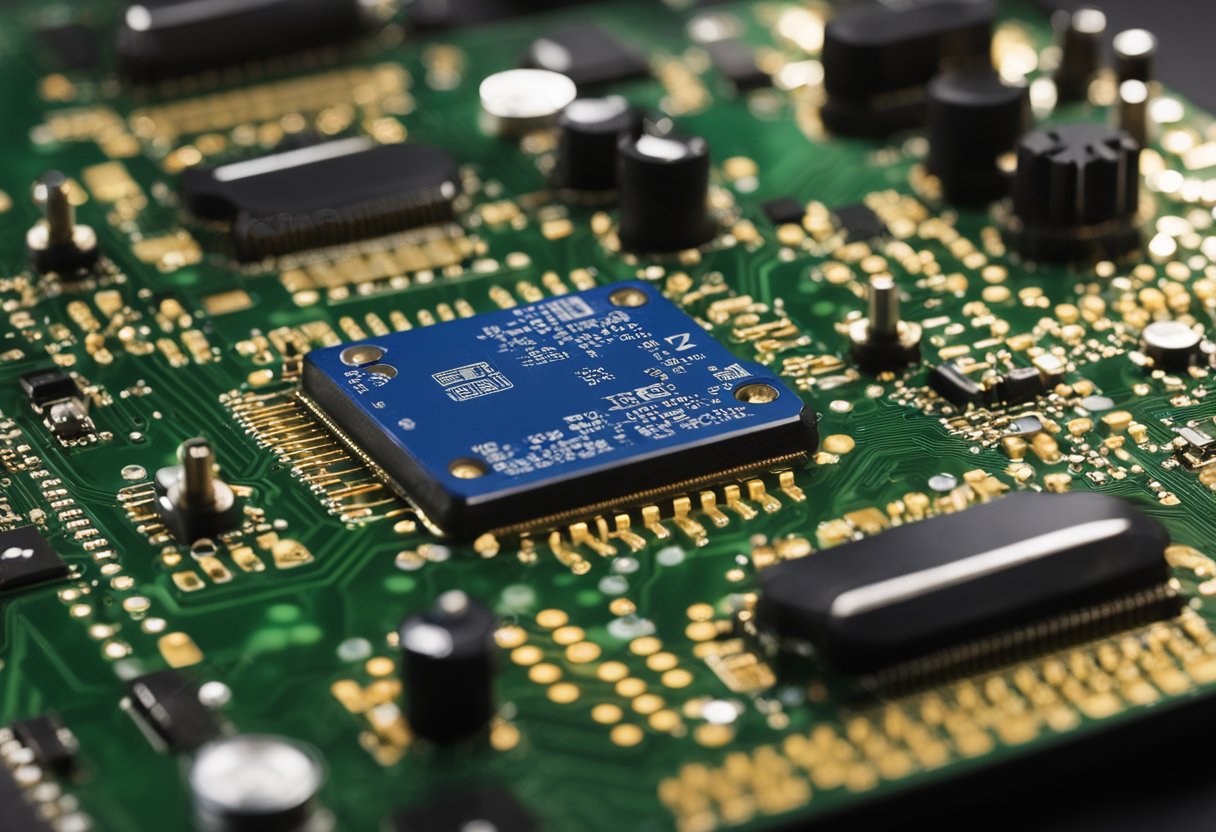

Multiple electronic components being placed and soldered onto a printed circuit board using surface-mount technology

Surface-Mount Technology (SMT) is one of the most significant innovations in the field of electronics manufacturing and PCB assembly. It has revolutionized the way electronic components are mounted onto printed circuit boards, making electronic devices and gadgets smaller, lighter, and more efficient.

SMT Equipment

SMT equipment is used to place and solder surface-mount components onto printed circuit boards. It includes a range of machines and tools that are designed to handle different aspects of the SMT process. Some of the most common SMT equipment include:

  • Pick-and-Place Machines: These machines are used to place surface-mount components onto printed circuit boards quickly and accurately. They use a combination of vacuum suction and mechanical arms to pick up and place components onto the board.
  • Reflow Ovens: Reflow ovens are used to solder surface-mount components onto printed circuit boards. They use a combination of heat and solder paste to melt the solder and create a strong bond between the component and the board.
  • Stencil Printers: Stencil printers are used to apply solder paste onto the surface of the board. They use a stencil to apply the paste to specific areas of the board, ensuring that the right amount of paste is applied to each pad.

SMT Process

The SMT process involves several steps that are designed to ensure that the surface-mount components are placed and soldered onto the board correctly. The process includes the following steps:

  1. Component Placement: This step involves placing the surface-mount components onto the board using a pick-and-place machine. The machine picks up each component and places it onto the board in the correct position.
  2. Solder Paste Application: Once the components are in place, solder paste is applied to the surface of the board using a stencil printer. The paste is applied to each pad in the correct amount to ensure that the component is soldered correctly.
  3. Reflow Soldering: The board is then placed in a reflow oven, where the solder paste is melted and the components are soldered to the board. The oven uses a combination of heat and time to ensure that the solder melts and creates a strong bond between the component and the board.

Overall, the SMT process is a highly efficient and precise way to mount electronic components onto printed circuit boards. It is widely used in modern electronics manufacturing due to its ability to produce high-quality products quickly and cost-effectively.

Through-Hole Technology

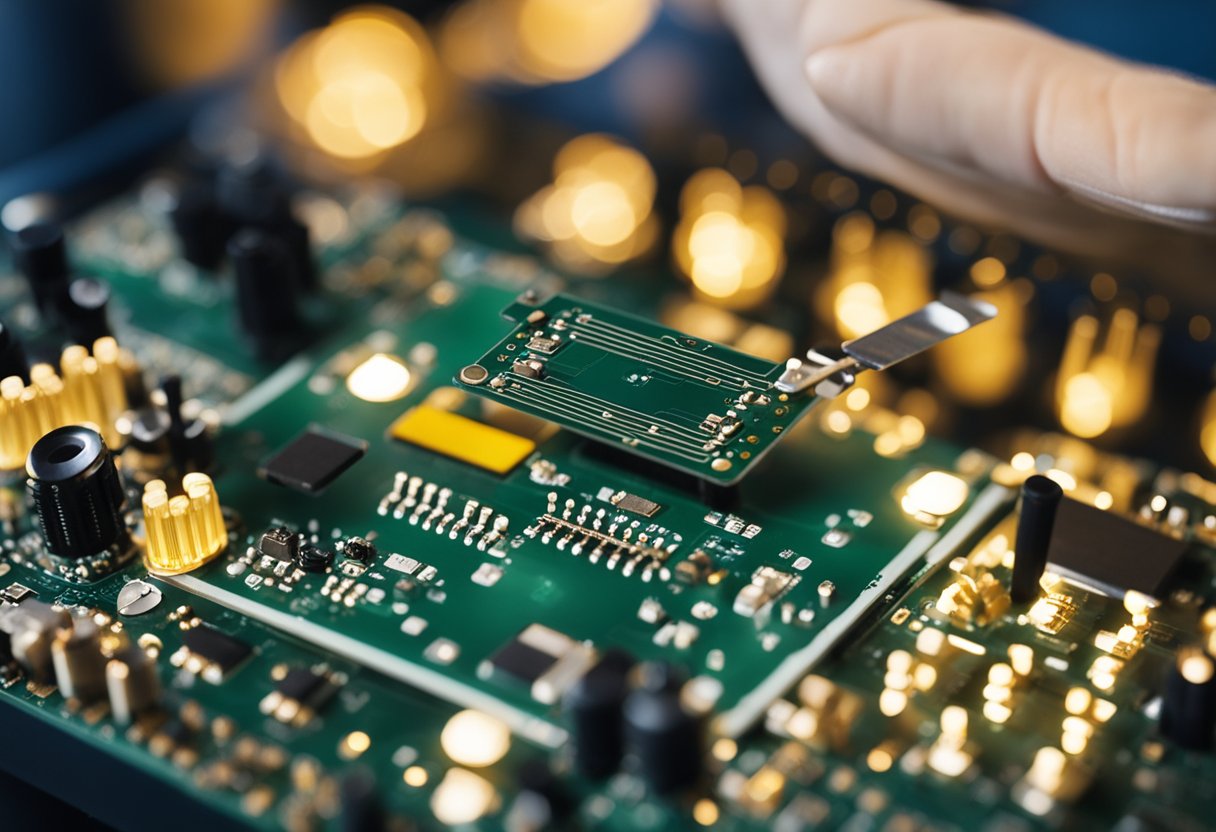

Components being inserted into holes on a PCB, followed by soldering

Through-Hole Technology (THT) is a method of assembling electronic components on a printed circuit board (PCB) by inserting leads of components through holes drilled in the board and soldering them to the copper pads on the other side of the board. THT was the primary method used for PCB assembly until the introduction of Surface Mount Technology (SMT). However, THT is still widely used in applications that require high current-carrying capacity, mechanical strength, and reliability.

THT Techniques

The two main THT techniques are wave soldering and hand soldering. Wave soldering is an automated process that involves passing the PCB over a wave of molten solder, which solders the components to the board. Wave soldering is faster and more efficient than hand soldering, but it requires a large investment in equipment and is not suitable for small-scale production.

Hand soldering is a manual process that involves using a soldering iron to melt solder and join the components to the board. Hand soldering is more flexible than wave soldering and can be used for both small-scale and large-scale production. However, hand soldering is slower and less efficient than wave soldering, and requires skilled operators to ensure high-quality solder joints.

Manual vs Automated THT

Manual THT is suitable for small-scale production and prototyping, where flexibility and customization are important. Manual THT also allows for easy rework and repair, which is important during the development phase of a project. However, manual THT is slower and less efficient than automated THT, and requires skilled operators to ensure high-quality solder joints.

Automated THT is suitable for large-scale production, where speed and efficiency are important. Automated THT is also more consistent and reliable than manual THT, as it eliminates the variability introduced by human operators. However, automated THT requires a large investment in equipment and is less flexible than manual THT, as it is optimized for high-volume production.

Quality Control and Testing

PCB assembly and soldering being tested for quality control

PCB assembly and soldering are crucial stages in the manufacturing of printed circuit boards. However, to ensure the quality and reliability of the final product, it is important to have a comprehensive quality control and testing process in place.

Inspection Methods

Visual inspection is a fundamental quality control process in the manufacturing of printed circuit boards (PCBs). It involves a meticulous examination of the PCB’s physical components and solder connections using the human eye or automated systems. Visual inspection can be generally divided into electrical and visual inspection methods. Visual inspection uses a magnifier or the technician’s bare eyes to manually find solder defects and other visible defects such as component orientation. Electrical inspection, on the other hand, uses automated systems to check the electrical connections of the PCB.

Another inspection method is the Automated Optical Inspection (AOI) system. AOI machines are used to inspect the PCB for manufacturing defects such as missing components, incorrect component placement, solder shorts, and solder bridges. AOI machines use cameras to capture images of the PCB and compare them to the design files to identify any discrepancies.

Testing Procedures

Testing the PCB is an important step in ensuring its functionality and reliability. There are different methods of testing for the circuit board, and the manufacturer can choose the appropriate method based on the requirements and specifications of the PCB.

One of the most common testing methods is the In-Circuit Test (ICT). ICT is a method of testing the electrical connections of the PCB using a bed-of-nails fixture. The fixture contains spring-loaded pins that make contact with the PCB’s test points. An electrical current is then passed through the PCB to test the connections.

Another testing method is the Functional Test (FT). FT is a method of testing the PCB’s functionality by simulating its real-world operating conditions. The PCB is connected to a test harness and subjected to various stimuli to verify its performance.

In conclusion, a comprehensive quality control and testing process is crucial in ensuring the quality and reliability of the final PCB product. Visual inspection, AOI, ICT, and FT are some of the commonly used methods in the industry.
